1. Chemical compositions (mass%)
| C | Si | Mn | P | S | Ni | Cr | Mo | Cu | N |
| 0.018 | 0.49 | 0.69 | 0.028 | 0.0005 | 6.95 | 24.88 | 3.04 | 0.17 | 0.133 |
2. Heat treatment
As-received
3. Optical micrograph
4. Tensile test conditions

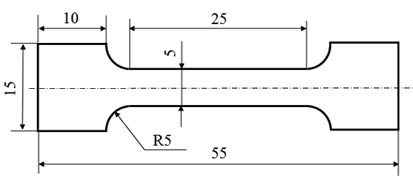

a. Specimen size
Gage length: 25 mm, Gage width: 5 mm, Thickness: 1.5 mm
.gif)
b. Conditions
Temperature: 123 K - 373 K
Strain rate: 3.3x10-4 s-1

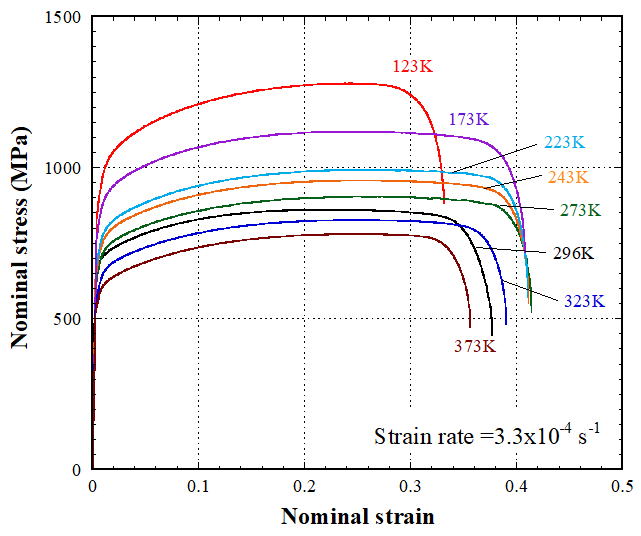

5. Stress-strain curves
Excel file (SUS329J4L)
Reference: N.Tsuchida, T.Kawahata, E.Ishimaru, and A.Takahashi, ISIJ Int., 54 (2014), 1971.
